Densolit Schleifscheibe mit X-Technologie Ø102x38mm, AH 22 mm
- Shipping within 48h (for items on stock)
- Prices by PU / ex Warehouse Germany
- Worldwide delivery
- Hotline: +49 731 14414 20
Unit Wheels are contour wheels with a flat contact / working surface with larger diameters and widths. They are very popular for use on tyre sidewalls and the texturizing of conveyor belts or splice ends of pre-cured treads. Another major application is their installation in manual buffing arms to do the fine work on retread tyre-shoulders.
NeroForce Unit wheels are offered in various dimensions and most common AH settings. We also offer selected tools with a multipurpose AH of 60mm.
We supply various re-usable hubflange kits for these tools as well as custom made ones to fit all machine flange types to ensure that our tools can be used for all available machines and applications.
This tool is equipped with NeroForce’s X-Technology.

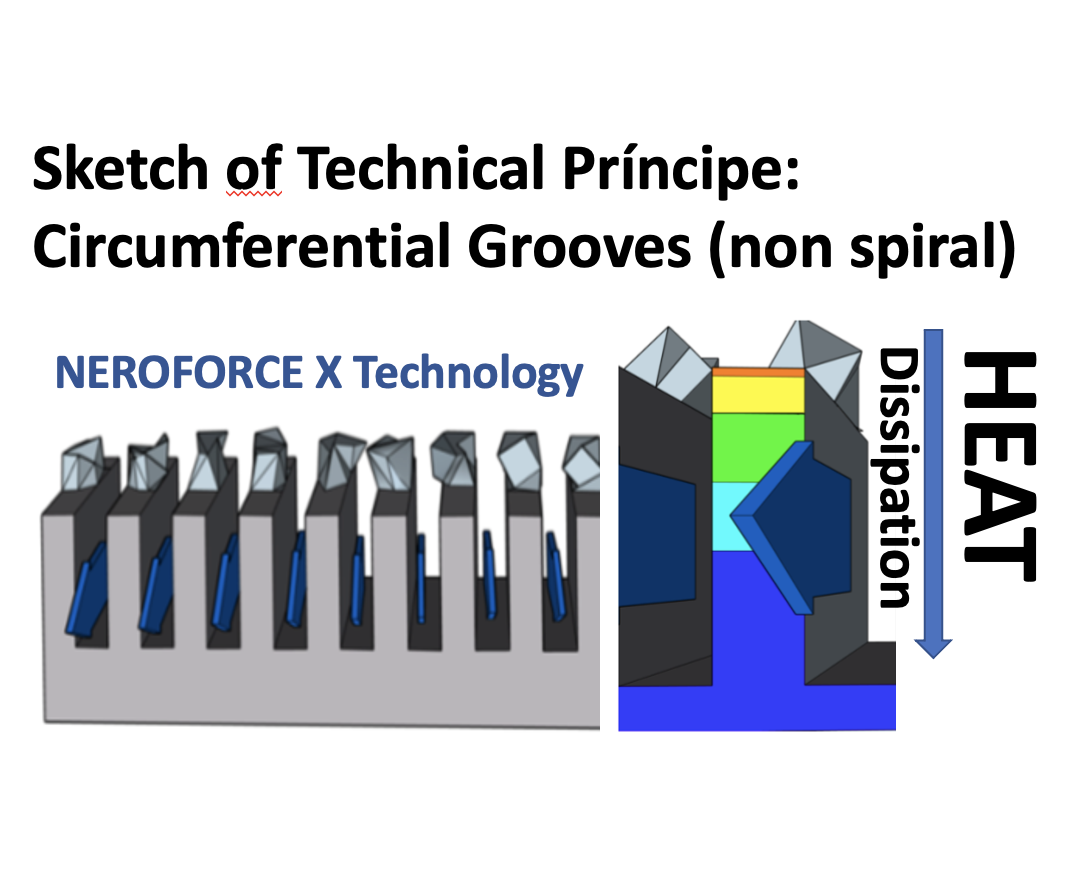

The new and unique "X-technology" from NeroForce ensures better removal of rubber dust from the working area and more effective cooling without the need for cooling holes.
The surface of the base body consists of rows of trapezoidal recesses. Embossed, circumferential grooves run between them, which not only remove the rubber dust from the working area due to the rotation of the grinding wheel, but also create an air flow channel that significantly reduce the rising temperature of the tool during grinding. The grooves are intentionally not arranged in a spiral pattern in order to prevent resulting screw and shear forces. Since this could result in excessive wear or damage to your machine bearings etc.
The Phenomena / Effect:
- Neither the tool nor the rubber heats up and the surface has a visibly more even texture
- The adhesion of the Tungsten Carbide abrasive to the straight surfaces of the trapezoid is much better than is possible with a rounded or pointed profile
- Better excavation of rubber dust from work area
- Reduced rising temperature during use
- Significantly longer operation life of the tool
Unit Wheels of the UWX line from NeroForce are probably the most efficient & performing tungsten carbide tools and are state of the art in tungsten carbides.
This tool is also equipped with our latest coating technology: DENSOLIT
The revolutionary NeroForce DENSOLIT tools are exposed to a new and innovative treatment in which a fine bionic sealing layer is applied to the abrasives. Already with our Chrome line, we improved the carbide tool sector noticeably, but with DENSOLIT we go one step further and can present the probably best tungsten carbides available in the market. Their sharpness from the first use is exceptional as the grit is almost fully exposed and not covered at all by any copper, silver or gold paint coating.
- The sharpness of the buffing tools is not affected by the extremely fine protective layer and remains rough and aggressive for longer
- As the amount of foreign material is minimal, the areas to be processed will be considerably less contaminated or not contaminated at all
- Heat generation by friction is reduced and the tools remain cool for longer, which prevents the rubber in the working area from smearing
- Extremely durable and efficient tungsten grit coating
- Smooth and vibration-free rotation
- Number and shape of cooling ducts are optimised for performance
- Available with standard grits 16, 18, 23, 36
- Individually packaged
DENSOLIT & the X-technology by NeroForce is a protected technology/design - Engineered in Germany
